  2. Three-Stage Type 2 & 3 Lab Water Purification System
WH201P / 501P / 201C / 501C

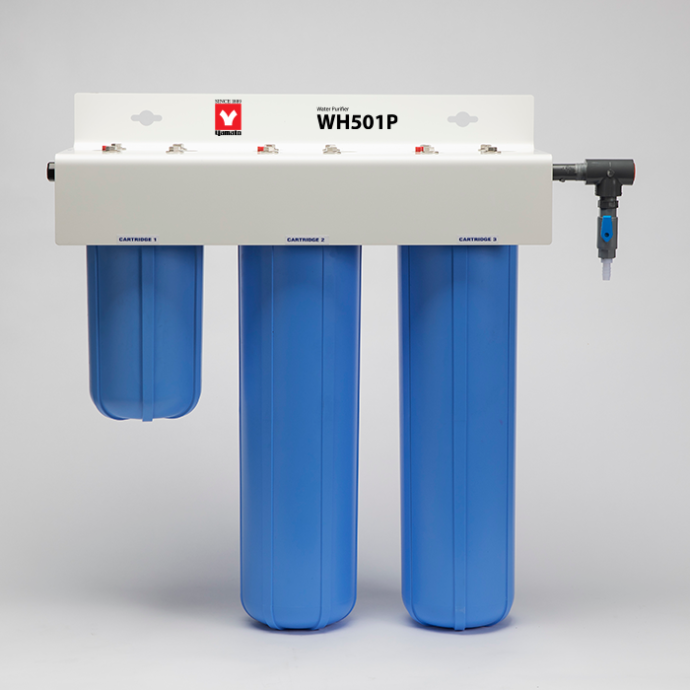

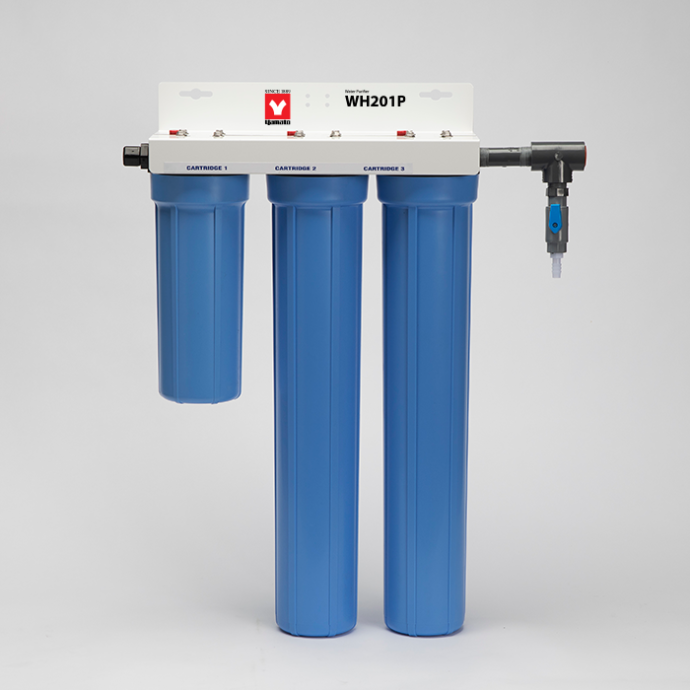

Three-Stage Type 2 & 3 Lab Water Purification System

https://www.transformingcannabis.com/web/image/product.template/17/image_1920?unique=fe871bd

A pre-assembled cartridge system that provides deionized water using a staged filtration process. Water purification is provided using a three-stage process.

Applications

• High purity models: WH201P and WH501P: use low odor mixed bed cartridges for applications requiring better than 10 MΩ water quality
• General deionization, battery water filling, humidification, hydrogen generator, glassware rinse, glassware washer, sterilizers
• High capacity models WH201C and WH501C: provide water quality better than 50 kΩ, for less corrosive applications, ideal for scale reduction and non-stainless steel piping systems Environmental chambers, sterilizers, ultrasonic cleaners, chiller loops

$ 0.00 $ 0.00

    This combination does not exist.

    Contact Us

    Features      Cartridge Replacement Kits      Replacement Resistivity Lights​     Technical Specs     Downloads

    Stop wasting half your ultrapure water budget.


    3 STAGES PROCESS

    • Stage 1
      Removes particles greater than 5 micron, chlorine, and organics
    • Stages 2 & 3
      Deionizers designed to remove dissolved minerals


    Fill in the form below for a quote

    Submit

    ​WH201P / 501P / 201C / 501C
      Features


    Turn-key system for low cost – on demand service​


    Resistivity light included for visual indication of cartridge replacement​


    Available in high purity and high capacity configurations​ ​


    Available in 2-1/2″ and 4/1/2″ diameter configurations


    Outlet isolation valve, spanner wrench and associated tubing provided


    Economically produces DI water​

    ​WH201P / 501P / 201C / 501C

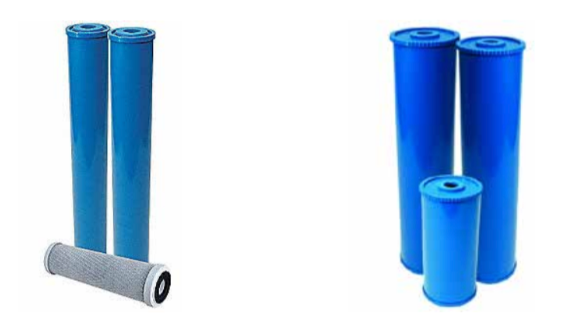

    Cartridge Replacement Kits​

    Product

    Description

    Contents

    Suitable Model

    ARI-HYK001

    High Purity Cartridge Replacement Kit

    (1) 2.5" x 10" Carbon Block

    (2) 2.5" x 20" Mixed Bed

    WH501P

    ARI-HYK001

    High Purity Cartridge Replacement Kit

    (1) 4.5" x 10" Carbon GAC

    (2) 4.5" x 20" Mixed Bed

    WH501P

    ARI-HYK009

    High Capacity Cartridge Replacement Kit

    (1) 2.5" x 10" Carbon Block

    (2) 2.5" x 20" High Capacity

    WH201C

    ARI-HYK010

    High Capacity Cartridge Replacement Kit

    (1) 4.5" x 10" Carbon Block

    (2) 4.5" x 20" High Capacity

    WH501C


                                   WH501P

    WH201P / 501P / 201C / 501C​
     Replacement Resistivity Lights​

    Product Code

    Description

    ARI-CL20K50

    20 Kohm Resistivity Light

    ARI-CL200K50

    200 Kohm Resistivity Light

    ARI-CL2MG50

    2 Megohm Resistivity Light


        2.5" Cartridge Replacement Kit                         4.5" Cartridge Replacement Kit


    WH201P / 501P / 201C / 501C
    Technical Specs

    MODEL WH201P WH501P WH201C WH501C
    Distilled Water Capacity In Gallons
    FEEDWATER
    Total Dissolved Solids (TDS As CaCO₃)    		 High Purity DI Water
    Better than 10 Megohm    		 High Capacity DI Water
    Better than 50 Kohm
    10 Ppm* 2650 6800 3000 8000
    100 Ppm 265 680 300 800
    300 Ppm 90 225 100 265
    500 Ppm 50 135 60 160
    Filter Technology (1) 10” Carbon Block
    (2) 20” High Purity    		 (1) 10” Carbon GAC
    (2) 20” High Purity    		 (1) 10” Carbon Block
    (2) 20” High Capacity    		 (1) 10” Carbon GAC
    (2) 20” High Capacity
    Bowl Diameter 2.5” 4.5” 2.5” 4.5”
    Resistivity Light 200 KΩ 20 KΩ
    Flow Rate 0.5 gpm / 1.9 lpm 1.25 gpm / 4.7 lpm 0.5 gpm / 1.9 lpm 1.25 gpm / 4.7 lpm
    Total Capacity Grains As CaCO₃ 1800 4760 2160 5710
    Typical Effluent 10 MΩ-cm 50 MΩ-cm
    Connection Inlet - 3/8" O.D. tubing
    Outlet - 1/2' hose barb
    Pressure 10 PSIG minimum
    100 PSIG maximum
    Temperature (Max) 100˚F / 30˚C
    Filter Housing Polypropylene
    Bracket Painted steel
    Dimensions (H X W X D) 24”x 20”x 6 26”x 36”x 9 24”x 20”x 6 26”x 36”x 9
    Shipping Weight 24 lbs. 55 lbs. 24 lbs. 55 lbs.
    Voltage 120V

    WH201P / 501P / 201C / 501C
    ​    Downloads

     WH Series Auto Pure Water Purifier
