Automated live cell imaging system

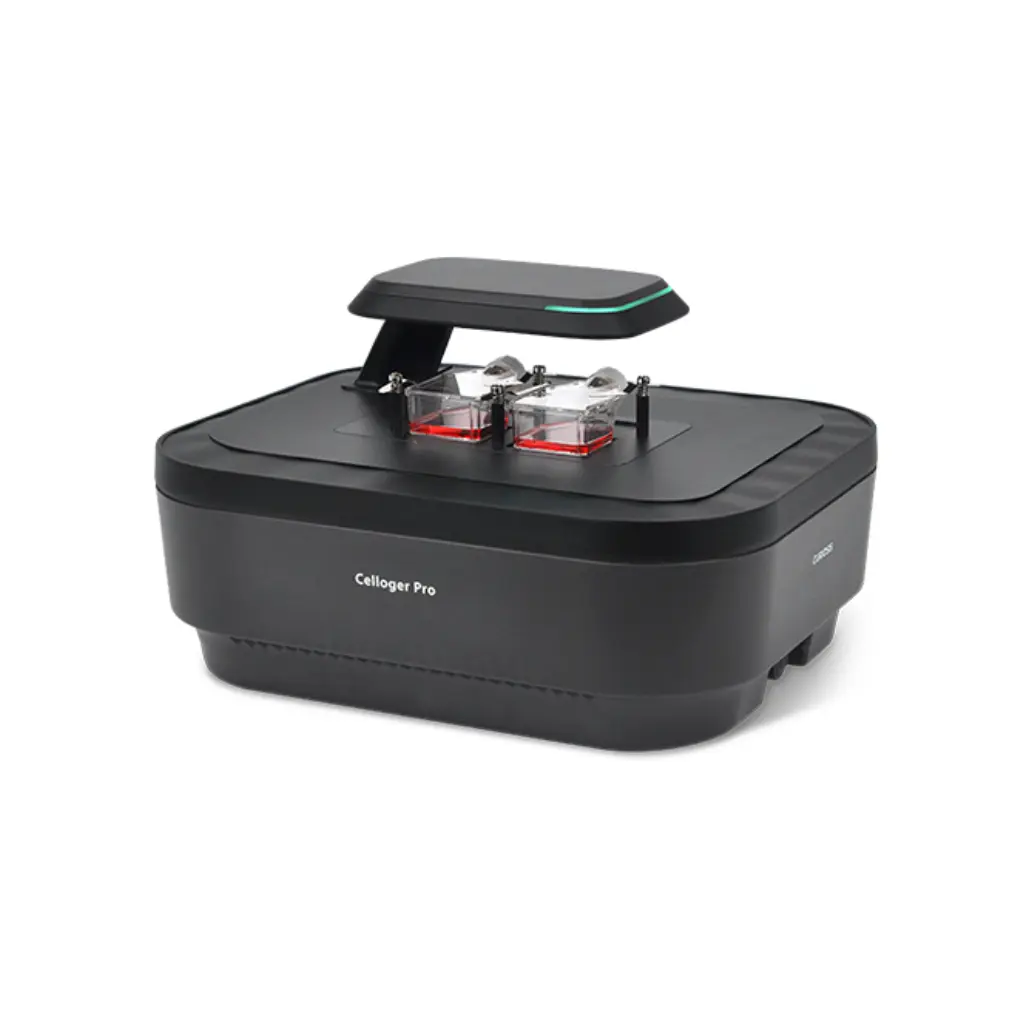

Celloger® Pro is an advanced live cell imaging system offering exceptional image quality and convenience. It enables real-time cell monitoring inside the incubator, allowing seamless observation and tracking of cellular dynamics without disturbing the natural growth environment. With dual fluorescence and bright-field microscopy, multiple markers can be visualized simultaneously, while multi-point time-lapse imaging captures dynamic cellular events at various locations.
Key Features
Real-time cell monitoring inside an incubator
Dual fluorescence microscopy for enhanced imaging
Multi-point time-lapse imaging capability
User-interchangeable objective lens option
Intuitive interface and user-friendly tools
Multicolor fluorescence and brightfield imaging
With its dual color fluorescence and bright-field imaging capabilities, Celloger® Pro enables the capture of high-quality and high-resolution images.
With enhanced scanning methods and innovative merging techniques, the system reduces scanning time, enabling researchers to analyze cellular dynamics with exceptional clarity and efficiency.

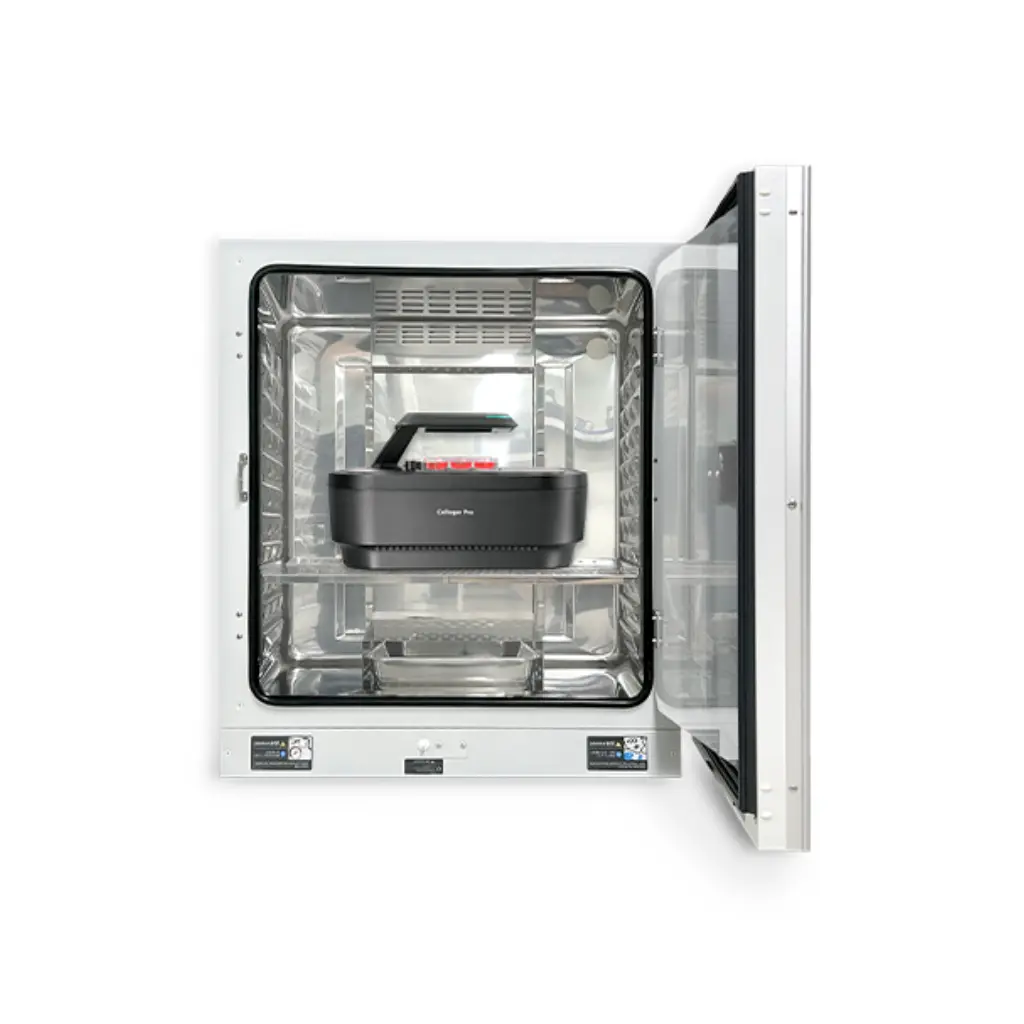

Real-time monitoring inside the incubator

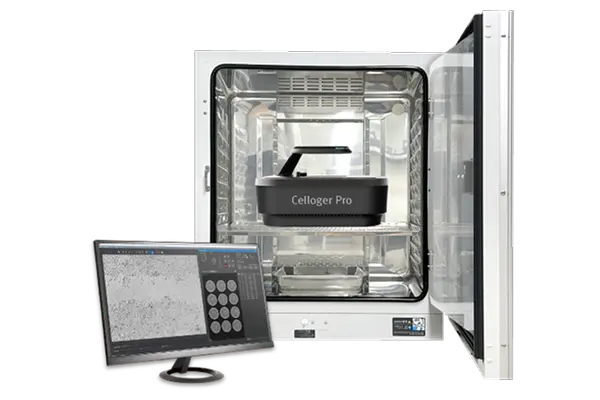

Celloger® Pro is designed to facilitate real-time monitoring of cells inside an incubator. By simply placing the device within the incubator and connecting it to an external PC, researchers are able to remotely observe cells in real-time.
With the time-lapse function, cell images are captured according to the schedule set by the researcher; the images can then be easily converted into time-lapse videos.
User-interchangeable objective lens
Celloger® Pro offers user-interchangeable objective lenses, providing flexibility to researchers based on their specific study requirements. With options such as 2X, 4X, and 10X objectives, users can switch between these lenses by hand.

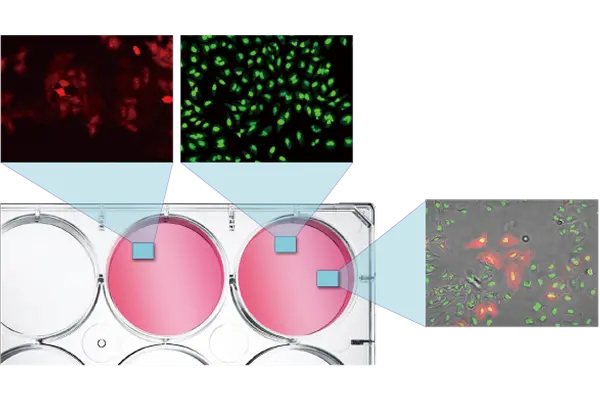

Capturing images from multiple positions

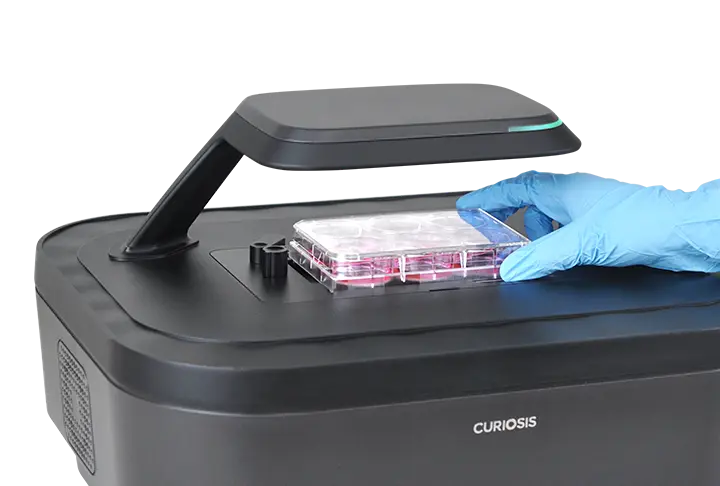

Celloger® Pro enables imaging of samples in multiple positions by automatically moving the integrated camera while keeping the vessel and sample fixed on the stage. This ensures a stable environment for the cells, resulting in enhanced image quality and precise research outcomes.

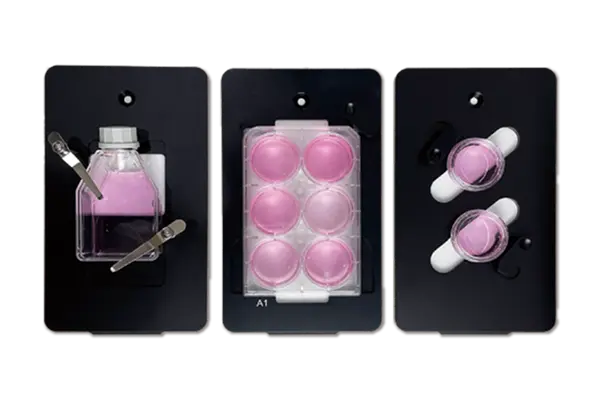

Compatible with different vessel types
The system is compatible with different cell culture vessels such as well plates (up to 96 wells), flasks, dishes, and slides, and can switch between them by simply replacing the vessel holders for specific needs.
