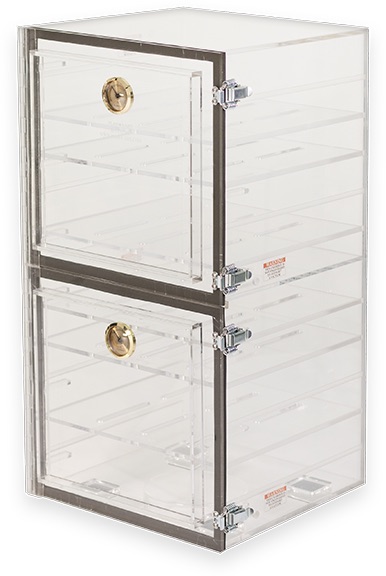

Yamato Clear Desiccators
Our desiccators are designed to protect, store, and transport critical materials while preventing contamination. These dust- and moisture-free cabinets safeguard valuable research specimens and sensitive electronic components, with clear visibility of contents without opening the door.
When operated under a slight positive N₂ charge, they block moisture from penetrating the molecular structure of stored materials.
PLA-8605CGNS / PLA-860CGNS / PLA-861CGNS / PLA-8615CGNS / PLA-862CGNS / PLA-863CGNS
Features
• Units are all stackable with non-slip “grip tight” feet.
• Standardized construction means interchangeable shelves.
• All shelves have perforated slots (holes) for optimum gas circulation
• All desiccators with two or more cubicles have a built-in divider for added strength.
• Units are constructed of optically clear “jeweled” acrylic.
• Slip-a-part hinges are standard.
• Sealing clamps are spring-loaded for uniform locking tension.
• Built in hygrometer (Rh) gauge.
• All units have “door guards” to prevent warping and possible loss of internal atmosphere.
• Closed cell gasketing does not take a set.
• Special “gasket guard system” prevents gaskets from taking a set and causing a leak.
• Each cubicle includes two (2) Nylon gas serrated nipples 1/8” & 1/4” (90 ° elbows with hose barbs).

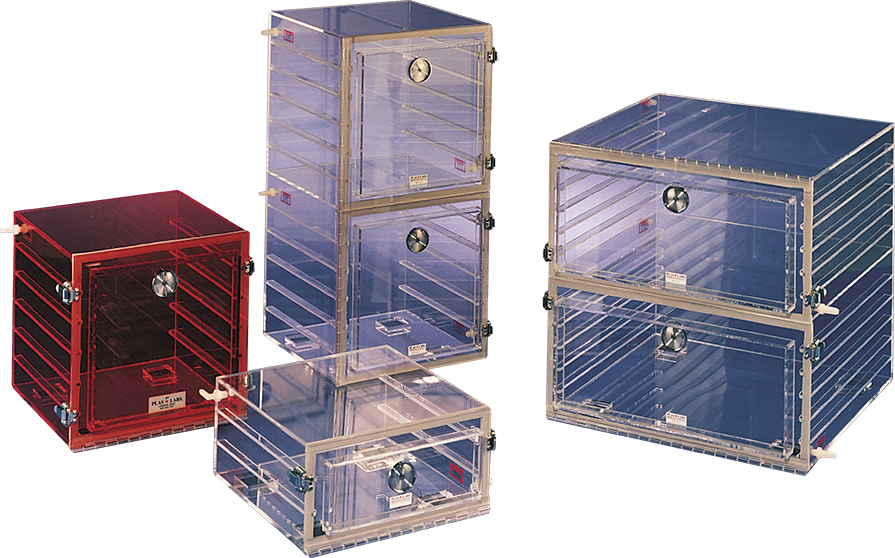

• Available in clear, amber, and black acrylic
Clear Acrylic Desiccators

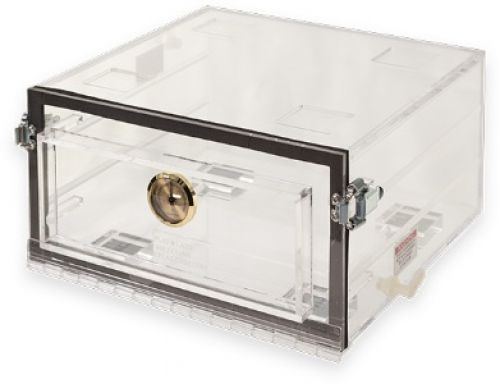

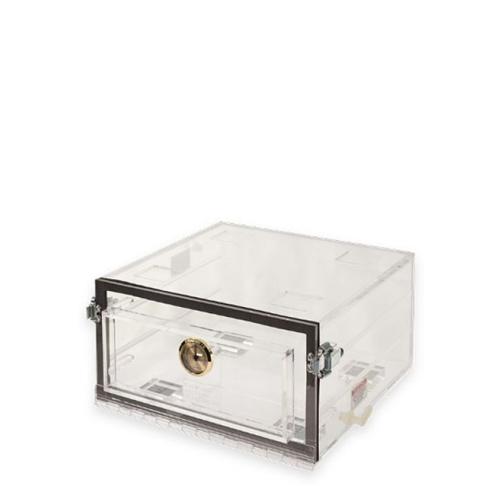

PLA-8605CGNS
12" x 12" x 6" high
One (1) cubicle
Two (2) shelf positions
Two (2) perforated Shelves

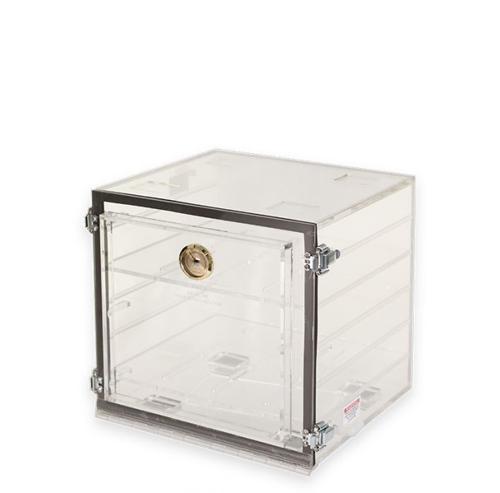

PLA-860CGNS
12" x 12" x 12" high
One (1) cubicle
Five (5) shelf positions
Two (2) perforated shelves

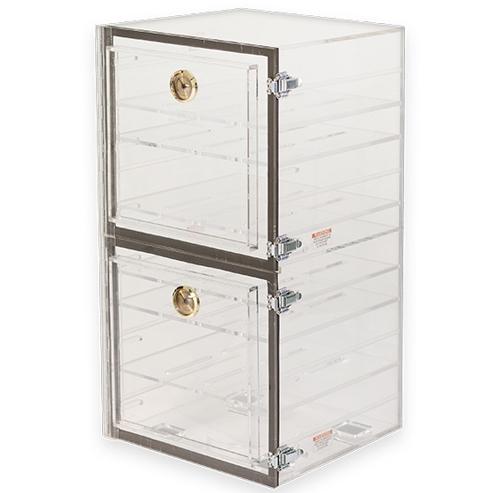

PLA-861CGNS
12" x 12" x 24" high
Two (2) cubicles
Five (5) shelf positions per cubicle
Four (4) perforated shelves

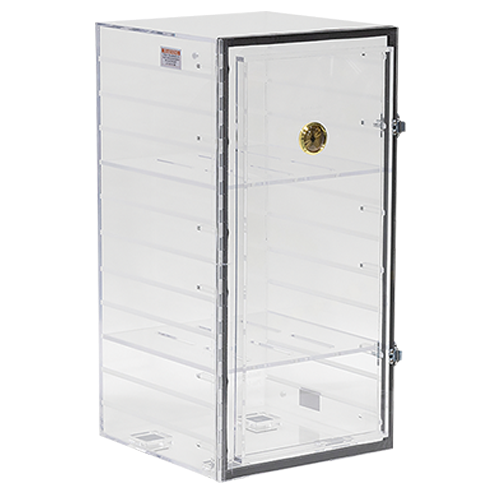

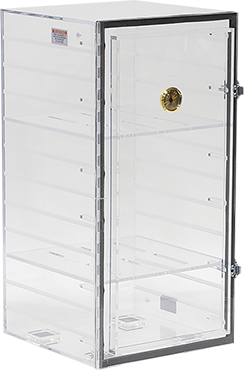

PLA-8615CGNS
12" x 12" x 24" high
One (1) cubicle
Eleven (11) shelf positions
Four (4) perforated shelves

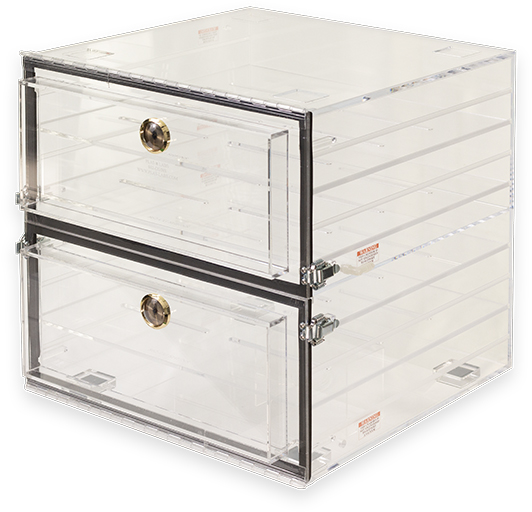

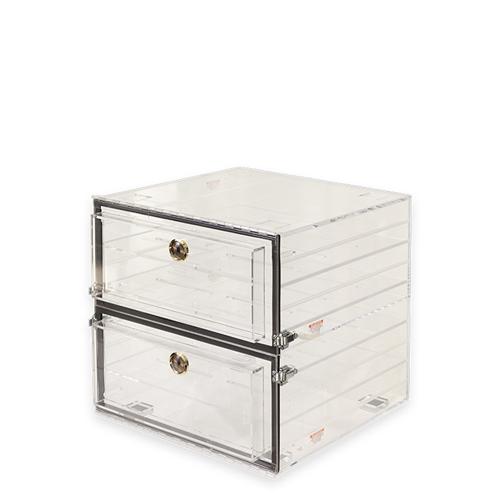

PLA-862CGNS
18" x 18" x 18" high
Two (2) cubicles
Five (5) shelf positions per cubicle
Four (4) perforated shelves
PLA-863CGNS
24" wide x 18" deep x 24" high
Two (2) cubicles
Five (5) per cubicle
Four (4) perforated shelves
Downloads
Specifications
| Clear Desiccators | PLA-8605CGNS or PLA-860CGNS or PLA-861CGNS or PLA-8615CGNS or PLA-862CGNS or PLA-863CGNS |
