CMP-B2/B4/B10/BG4/BG10/BR4/BR10
Automated live cell imaging system

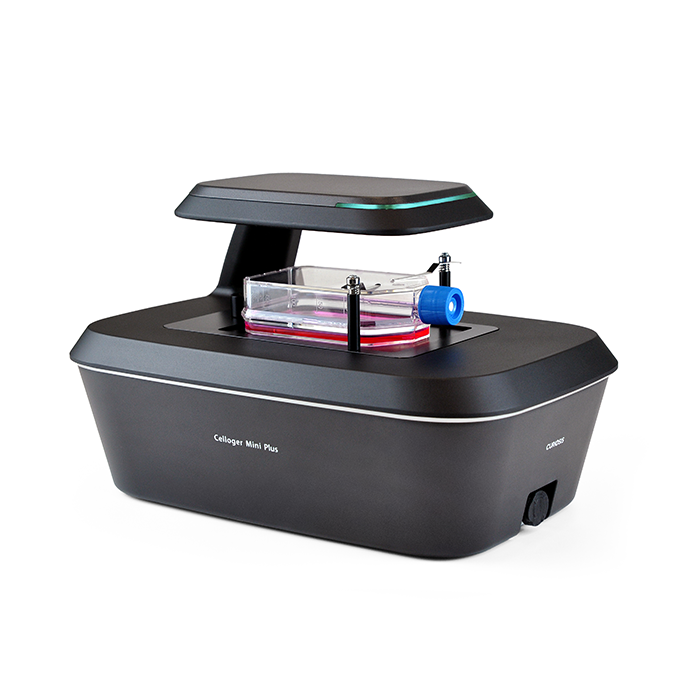

Celloger® Mini Plus is an automated live cell imaging system with advanced fluorescence and bright-field microscopy, autofocusing, and real-time multi-position imaging technology. It provides essential tools for acquiring high-quality images and obtaining accurate research results. This versatile and user-friendly system supports a wide range of cell-based research and applications. Expand your cell discoveries with Celloger® Mini Plus and accelerate your research.
Key Features
- Real-time cell monitoring
- Compact and portable design
- Multi-point imaging up to 96 wells
- Compatible with various vessel types
- Z-stack multi-focal imaging
- Reliable autofocus
Real-time monitoring
Maintaining the performance of a device working in a hot and humid environment is very challenging. With Celloger® Mini Plus, you can easily monitor live cells inside the incubator for a long time without disturbing the environment suitable for cell culture.
Compact size
Celloger® Mini Plus is compact in size with 226(h) x 358(l) x 215(w)mm where several Celloger® Mini Plus systems can fit into a standard CO2 incubator. Since the system weighs about 5kg, it can be easily carried in and out of the incubator during the experiment.
Multi-point imaging
Using the motorized camera that travels 117mm x 77mm, x and y axis respectively, multiple points within the travel range can be captured following the schedule (intervals, cycles, total time) set by the researcher.
Stable imaging performance
Celloger® Mini Plus doesn’t have a moveable stage but instead, the camera inside the system moves to capture the images of cell in multiple positions (refer to the video above). Since the vessel and cell sample are in a steady state, this provides a stable environment for the cells to grow.

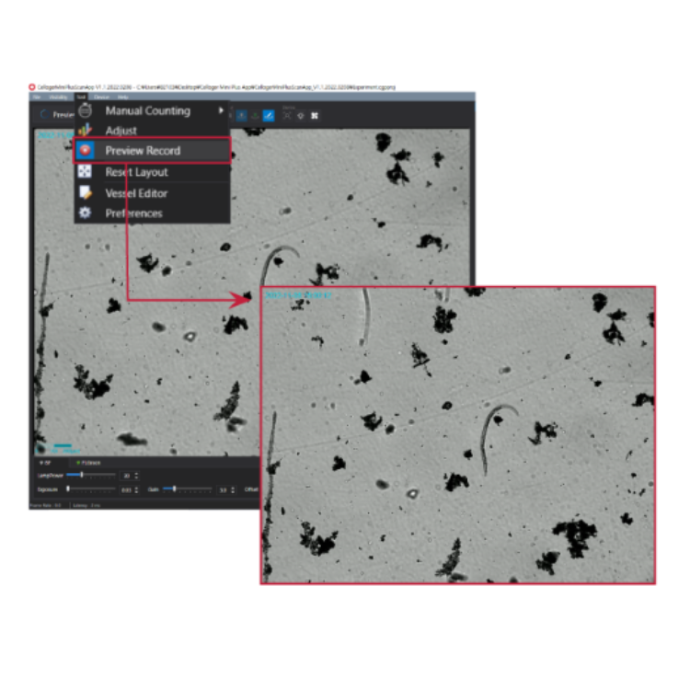

Time-lapse video
Images captured according to set schedule can be made into videos in simple clicks.
Single color fluorescence
Green or red
High quality images from multiple positions
Camera moving type

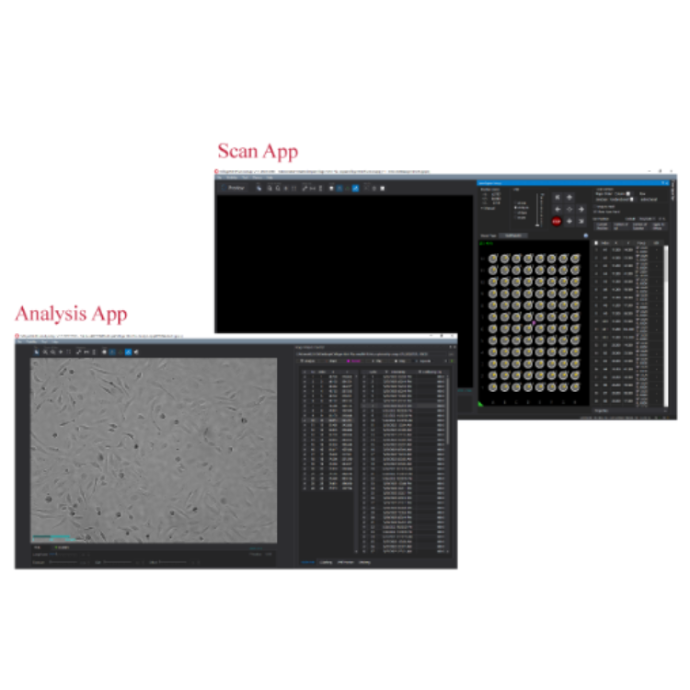

User-friendly functions
Autofocusing
Time-lapse video

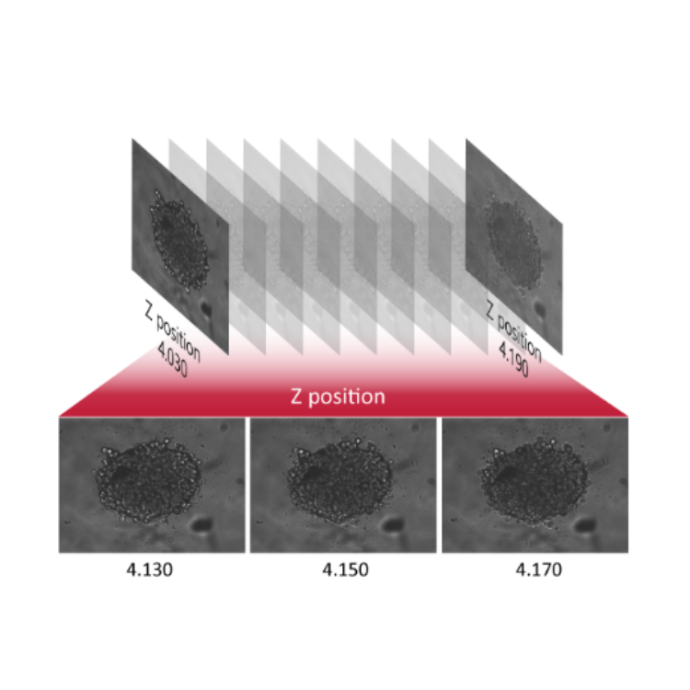

Z-Stacking

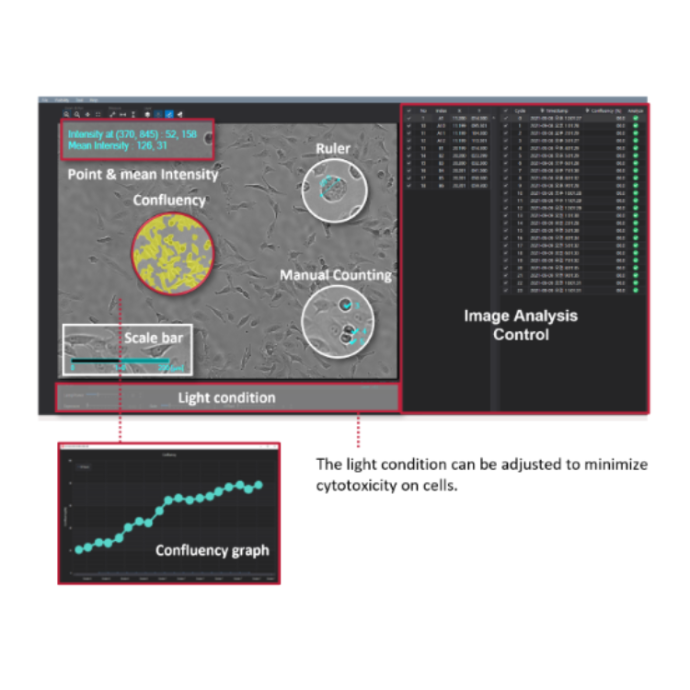

Analysis tools
Z-Stacking
Analysis tools
Applications
Images taken with Celloger® Mini Plus (4X objectives, bright field & green / red flourescence
Available Models
Specifications
| CMP-B2, CMP-B4, CMP-B10, CMP-BG4, CMP-BG10, CMP-BR4, CMP-BR10 |
