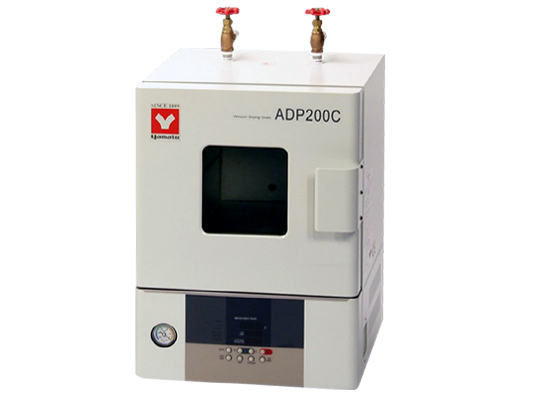

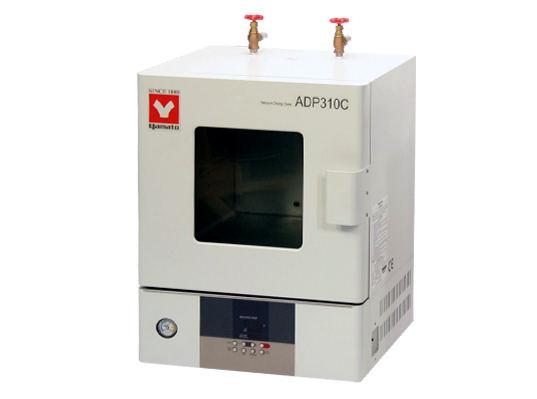

ADP200C/210C/300C/310C
Yamato ADP Series Vacuum Drying Ovens
The right vacuum oven makes you more efficient by ensuring the production of quality cannabinoid products takes less time, and proceeds to market faster. Which, ultimately, leads to happy customers and helps your bottom line. Vacuum ovens also help you produce higher quality products, and are great for drying cannabis flowers to remove residual solvents and prevent development of mildew and mold.
Interested in Yamato ADP Series Vacuum Drying Ovens?
The Yamato ADP vacuum oven is a standard, small sized benchtop vacuum drying oven that comes with enhanced safety features. Yamato vacuum ovens come from more than a century of experience building exceptional-quality lab instruments. They're already used by biotechs working on innovative cannabis products across the country, and they pair perfectly with other Yamato lab-scale instruments - making your workflow easier. Learn more below and contact us to request a quote.
Performance & functions:
- Easy input of parameters and settings
- Digital PID controller supports fixed temperature, quick auto-stop,
- auto stop, auto start and program operations
- Self-diagnostic and overheating prevention functions
- Silicon rubber door seal prevents air from leaking
- Independent over heating prevention device for each circuit
- Customizable with N₂ gas inlet and communication ports
- Calibration off-set function
- Easy maintenance
Safety features:
- Sensor trouble detection, SSR, short circuit detection, heater disconnecting detection, memory error, overheating and measurement temperature error
Yamato ADP Series Vacuum Drying Ovens
Sample Installation with Cold Trap and Vacuum Pumps
ULV-ADPCARKIT
Rubber Hose ID 16mm x 5'/1500mm
Hose Clamp for ID: 7/16" - 11mm hose
GLD-137CC115DPRKIT
GLD-137CC Pump 100-200V
Oil Mist Trap OMT-200A
Hose port ttype suction pipe (O18xM20xP1)
Square adapter 50mm for suction port
Rubber Hose 5', ID 16mm
Hose Clamp (ID:1")
Dimensions
Control Panel
Method
Yamato ADP Series Vacuum Drying Ovens
Technical Specs
| Model | ADP200C / ADP210C | ADP300C / ADP310C |
| System | Vacuum drying by decompressed chamber direct heating | |
| Operating Temp. Range | 40~240°C | |
| Operating Pressure Range | 101~0.1kPa (760~1 Torr) | |
| Temp. Control Accuracy | ±1.5°C (at 240°C) | |
| Max. Temp. Reaching Time | ~70min. | ~100min. |
| Interior Material | Stainless steel | |
| Temp. Control Method | PlD control by microprocessor | |
| Sensor | K-thermocouple | |
| Temp. Setting Method | Digital setting by ▲/▼ keys | |
| Temp. Display Method | Measurement temp.: Digital display by green LED / Setting temp.: Digital display by red LED | |
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. and 50 min. / Digital display | |
| Heater | Mica heater / 0.68kW | Mica heater / 1.05kW |
| Heat Insulating Material | Rock wool | |
| Observation Window | Tempered glass (12 mm thickness) and polycarbonate resin plate | |
| Vacuum Gauge | Bourdon tube type, 0~0.1 MPa (Gauge pressure) | |
| Safety Device | Self diagnostic functions (Heater, Sensor, SSR short circuit, automatic overheat prevention function), over current electric leakage breaker, overheating prevention device | |
| Internal Dimensions WxDxH | 200 x 250 x 200mm | 300 x 300 x 300mm |
| External Dimensions WxDxH | 400 x 412 x 603mm | 500 x 465 x 705mm |
| Internal Capacity | 10L | 27L |
| Shelf Loading | ~15kg / pcs | |
| Shelf Rest Step Number | 2 steps | 3 steps |
| Shelf Rest Pitch | 65mm | 75mm |
| Vacuum Port | O.D.18mm | |
| Power Source | AC115V 6A (with plug) AC220V 3.5A (no plug, round terminal) | AC115V 9.5A (with plug) AC220V 5A (no plug, round terminal) |
| Weight | ~30kg | ~55kg |
| Included Accessories | Shelf plate (Aluminum perforated metal) 2 pcs. | Shelf plate (Aluminum perforated metal) 3 pcs. |
| List Price | $3,730 | $4,730 |
