DP83C/104C

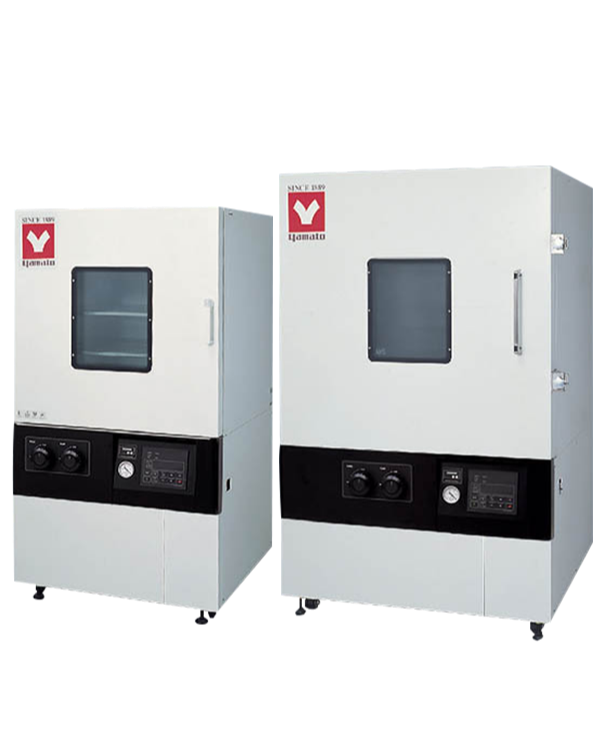

Yamato DP Series Industrial Vacuum Drying Ovens
The right vacuum oven makes you more efficient by ensuring the production of quality cannabinoid products takes less time, and proceeds to market faster. Which, ultimately, leads to happy customers and helps your bottom line. Vacuum ovens also help you produce higher quality products, and are great for drying cannabis flowers to remove residual solvents and prevent development of mildew and mold.
Interested in Yamato DP series industrial vacuum drying ovens?
Yamato vacuum ovens come from more than a century of experience building exceptional-quality lab instruments. They're already used by biotechs working on innovative cannabis products across the country, and they pair perfectly with other Yamato lab-scale instruments - making your workflow easier. Learn more below and contact us to request a quote.

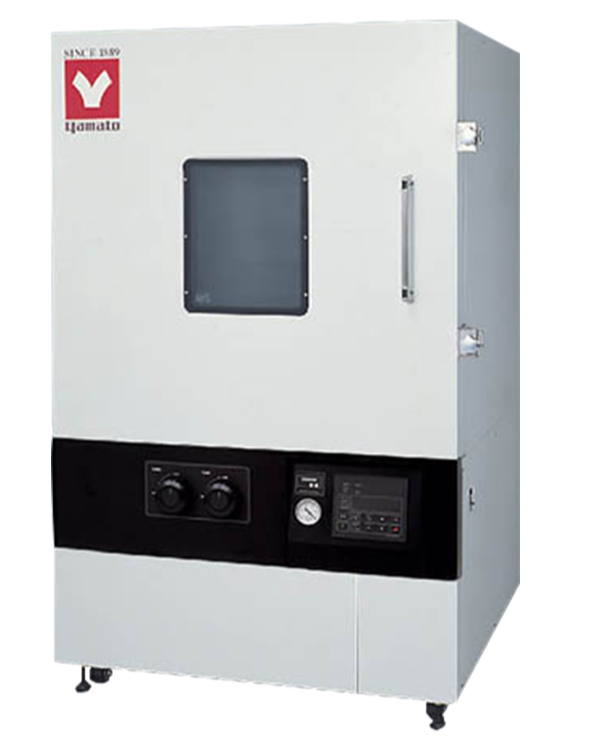

This large-scale Yamato DP Series Industrial Vacuum Drying Oven is designed to provide the best results for your cannabis production.
Performance & functions:
- Vacuum pump can be installed inside the oven
- Quickly connect and disconnect vacuum pipes, for easy vacuum pump maintenance
- Improved work efficiency, because the exhaust system is improved to significantly shorten the time to reach vacuum
- Set with specialized function menu key, and specify program operation with use of submenu to operate overheat protector, deviation correction and more.
Safety features:
- Self-diagnostic functions (abnormal temperature sensor, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, ELB to prevent overcurrent, key lock, etc.
- For safety, resin protection panel is installed at the observation window

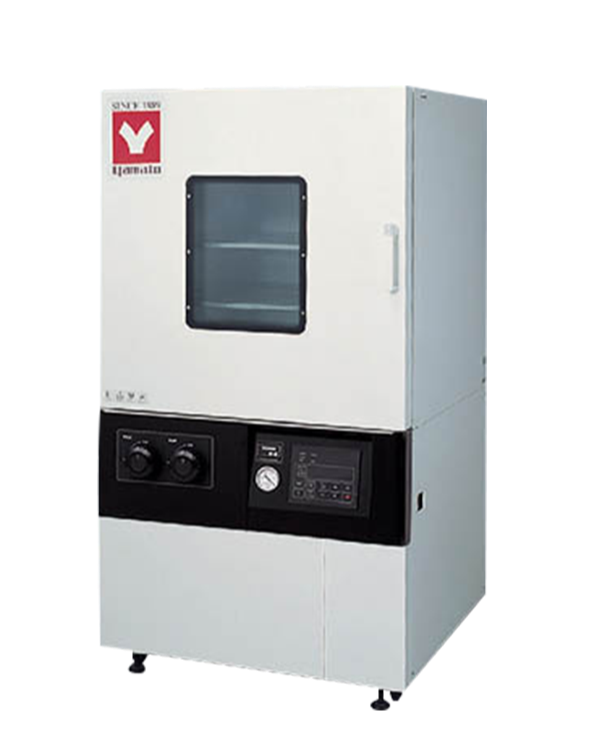

Yamato DP Series Industrial Vacuum Drying Ovens
Dimensions
Yamato DP Series Industrial Vacuum Drying Ovens
Technical Specs
| Model |
DP83C
|
DP104C
|
| Method |
Decompression • chamber wall heating |
|
| Operating Temp. Range |
40~200°C | |
| Operating Vacuum Range |
101~0.1kPa (760~1Torr) |
|
| Temp. Adjustment Accuracy |
±1.0°C (at 200°C) |
|
| Interior |
Stainless steel plate |
|
| Exterior |
Cold rolled steel plate with chemical proofing coating |
|
| Insulating Material |
Glass fiber |
|
| Heating Method |
Decompressed chamber wall direct heating |
|
| Heater Power |
6.5kW |
14.4kW |
| Observation Window |
Toughened glass + resin protection panel |
|
| Vacuum Gauge |
Pointer type, -100~0kPa |
|
| Vacuum Pump Installation Room |
Yes |
|
| Temp. Control |
3 segments PID |
|
| Temp. Setting |
Use specialized function menu key and up/down key to set |
|
| Temp. Display |
Measured temp. display: green 4-digit LED digital display |
Setting temp. display: red 4-digit LED digital display |
| Timer |
1min-99 hr 59 min and 100 hr-999 hr 50 min (attached with timing wait function) |
|
| Operation Function |
Fixed temp. auto start, auto stop, program operation |
|
| Program Mode |
Program operation 3 segments 30 steps (30 steps×1, 15 steps×2, 10 steps×3) |
|
| Additional Function |
Deviation correction, key lock, power outage compensation |
|
| Heater Circuit Control |
SSR driving |
|
| Sensor |
K thermocouple (temp. controller and overheat protector) |
|
| Safety Device |
Self-diagnosis circuit (abnormal temp. sensing, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, EBL to prevent overcurrent, key lock, etc. |
|
| Internal Dimensions W×D×H |
800×800×800 mm |
1000×1000×1000 mm |
| External Dimensions W×D×H |
1020×1020×1850 mm |
1300×1280×2110 mm |
| Internal Capacity |
512L |
1000L |
| Air Exhaust Port |
NW40 flange |
|
| Air Suction Port |
Rc 3/8 |
|
| Power Source (50/60Hz) Rated Current |
AC220V 31.5A (no plug, round terminal) |
3 phase AC480V 18A (no plug, round terminal) |
| Weight |
~450kg |
~1000kg |
| Included Accessories |
Stainless steel punching plates, 2 pcs. |
Stainless steel punching plates, 4 pcs. |
| Optional Accessories |
Shelf plate, vacuum pump, N₂ introduction device, recorder, alarm indicator lamp (stand-by/running/malfunction), external communication (RS485), temp. output terminal (4~20mA), Output terminal for external alarm, time up output terminal |
|
| Manufacturer Suggested Price |
$ 33,425 |
$ 40,110 |
