GB210B

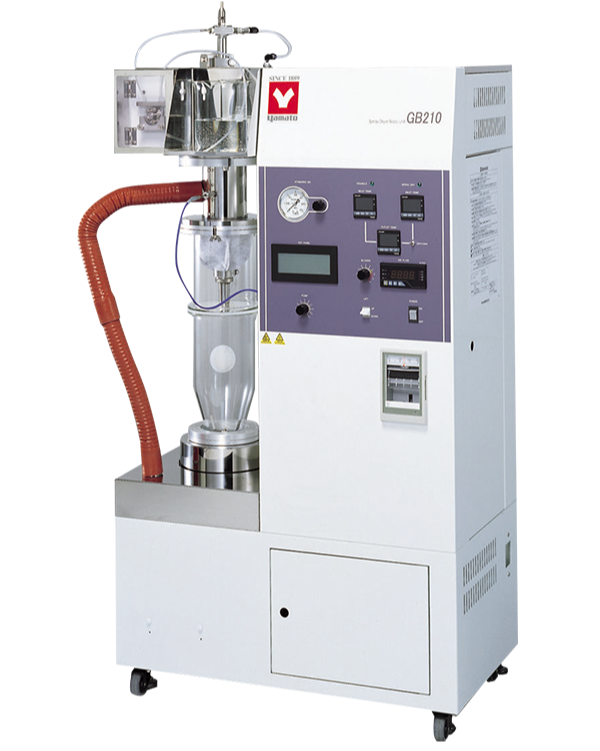

Yamato GB210B Versatile Granulation Spray Dryer
New spray drying technology is fundamentally changing the cannabis industry, with cannabis powder positioned to be the most in-demand product in the next five years. Early adopters of new spray drying technology will benefit most, and the Yamato GB210B spray drying unit is an excellent, versatile, user-friendly model to help your business grow.
The Yamato GB210B spray drying granulator incorporates outstanding fluid bed drying technology made for sophisticated granulation of powder, and drying of wet powder to create a premium, cannabis powder product.
Interested In the Yamato GB210B versatile granulation spray dryer?
This spray drying granulator creates a cannabinoid powder particle with defined and consistent structure, size, shape and composition. The GB210B Versatile Granulation Spray Dryer is a combination of the basic unit GB210 and the GF200 pulvis mini-bed attachment. In addition, this versatile granulating unit can be used for spray drying by installing the mini spray attachment GF300.
Spray granulation made simple. Every one of our spray drying systems are carefully designed and built to match your essential needs, and the GB210B is no exception. Obtain a combination of high performance and versatility to take your business to new heights.
Yamato GB210B Versatile Granulation Spray Dryer
Benefits
Spray drying technology allows manufacturers, distributors, retailers and growers to create products that last longer on shelves, cost less to transport and mix better with consumer products than oils. And the spray dryer granulation process has major advantages compared to mechanical granulation, including:
Lower shipping costs
Spray drying reduces your product’s weight to bioavailability ratio, making it more cost-effective to ship.
Easier storage
Powder is astronomically easier to store than oil.
Longer shelf life
The average shelf life of a spray dried cannabis product is over one year greater than oil.
Absolute solubility
Water and oil don’t mix. Cannabis powder mixes into edibles and drinks better.
A more consistent product
Spray drying makes it easier to produce standardized, cannabinoid-infused products.
Fast-acting, predictable and repeatable experiences
With an onset of 20 minutes, effects that can last up to 4 hours, and consistent product composition from one batch to the next, customers get a more predictable experience.
More eco-friendly choice
From production to shipping, cannabis powder is proven to be a more eco-friendly alternative.
Lab-scale process validation
Produce consistent results for customers, and ensure your product development can keep up with demand with scalable, spray drying technology.
Yamato GB210B Versatile Granulation Spray Dryer

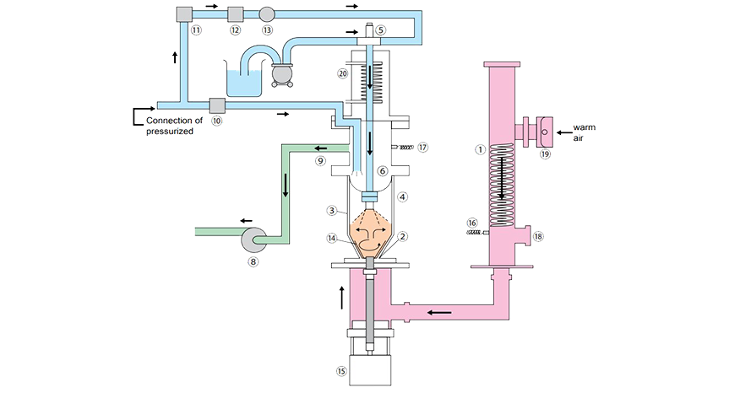

Diagram
No. | Part name
1. Heater
2. Micro porous plate
3. Flow layer chamber
4. Filter Chamer
5. Nozzle
6. Filter
7. Liquid sending pump
8. Blower
9. Interim pipe
10. Solenoid valve
11. 3-way solenoid valve
12. Needle valve
13. Pressure meter
14. Stirring blades
15. Stirring motor
16. Inlet temperature sensor
17. Outlet temperature sensor
18. Blind
19. Suction port, suction filter
20. Nozzle coding connection port
Yamato GB210B Versatile Granulation Spray Dryer
Features
The DL410 spray dryer is built with features that can benefit the cannabis industry at every point in the supply chain: cultivation, production, supplier and retail. With this unit, you can process smaller samples, produce exceptionally fine and pure cannabinoid powder, with no risk of contamination within the spray dryer.
User-friendly and convenient
The model is standard equipped with automatic lift, to enable convenient installation or removal of the glass chamber attachment
High specification for cannabis production
Conditions such as hot air temperatures, air amount and binder liquid flow amount can be set easily with the setting dial on the front of the spray dryer unit
Excellent data collection abilities
Features like the flowage meter, spraying pressure meter and chamber inlet/outlet temperature indicator are incredibly useful for data evaluation.
Safety and ease
The chamber is made of ultra-hard glass, allowing you to observe the status of the fluid bed or spraying status
Versatility
The unit can also be used for spray drying, by installing the mini spray attachment GF300 (optional)

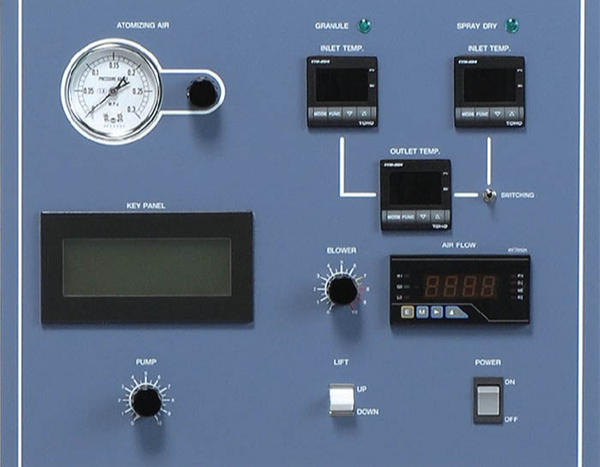

Control Panel
| Model | Noozle No. | Size (um) |
| 1A Standard | (F) 1650 (A) 64 | A 406 B 1270 C 1626 |
| 1 | (F) 2050 (A) 64 | A 508 B 1270 C 1626 |
| 2A | (F) 2050 (A) 70 | A 508 B 1270 C 1778 |
| 2 | (F) 2850 (A) 70 | A 711 B 1270 C 1778 |
| 3 | (F) 2850 (A) 64 | A 711 B 1270 C 1626 |

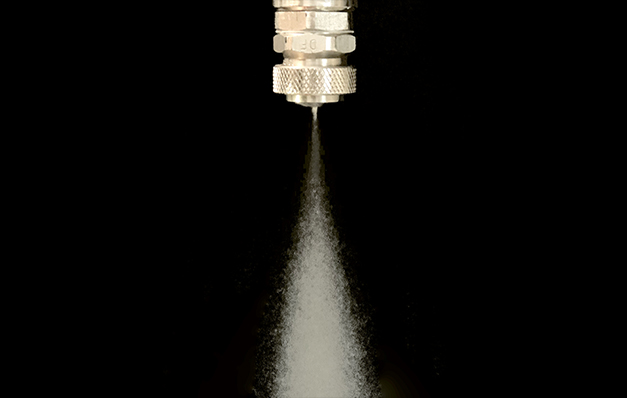

Two-way Nozzle System
Tip of the Nozzle comprises of a nozzle for liquid and a nozzle for gas.
Easy to take apart for cleaning to prevent contamination
Nozzle for liquid (F)
Nozzle for gas (A)
Yamato GB210B Versatile Granulation Spray Dryer
Technical Specs
| Model |
GB-210B
|
| Temp. Adjusting Unit Setting Range |
40 to 220°C (inlet temperature), 0 to 98°C (outlet temperature) |
| Temperature Adjusting Accuracy |
Inlet temperature ±1°C |
| Spraying System |
Two-way nozzle, Nozzle No. 1A as standard (0.4mm) |
| Drying Air Amount Adjusting Range |
0 to 0.7 m³/min |
| Spray Air Pressure Adjusting Range |
0 to 0.3 MPa |
| Liquid Sending Pump Flow Rate Range |
0 to 26 mL/min |
| External Output |
Inlet temperature, outlet temperature, temperature outlet (4-20 mA) |
| Automatic Lift |
Moving up/down of glass chamber automatic lift |
| Touch Panel |
Blower, heater, liquid sending pump, pulse jet switch, error display |
| Control Select Switch |
Inlet temperature, outlet temperature control switch (outlet temp. control is conditional) |
| Temperature Sensor |
K thermocouple |
| Heater |
2.0kW (at 200V) to 2.88kW (at 240V) |
| Liquid Sending Pump |
Fixed amount peristaltic pump |
| Spraying Air Pump |
Spraying air compressor (sold separately) is used. |
| Service Outlet |
For stirrer: AC100V, Max. 2A |
| Suction Blower |
Bypass blower, brushless DC motor |
| Filter |
Suction filter, exhaust filter |
| Temperature Adjusting Device |
PID digital |
| Spray Nozzle Cooling Mechanism |
Connector: nipple x 2, O.D.:ø10.5 mm |
| Spray Air Connection Diameter |
Nipple diameter: ø7 mm |
| Exhaust Connecting Diameter |
ø50mm |
| Safety Function |
Inlet/outlet temperature overheat, sample feed reverse rotation mechanism, over current electric leakage breaker, nozzle connection error |
| External Dimension WxDxH |
760 x 420 x 1350 mm |
| Weight |
~110 kg |
| Power Supply |
Single Phase AC200V~240V 50/60Hz 16~18A Switching of terminals necessary |
| Included Accessories |
Silicon tube (with a stopper) x 3, tiron tube (with a stopper) x 2, exhaust duct (with one hose band) x 1, outlet temperature sensor, spray air tube, sample box, static electricity removal earth, Teflon braided hose 5m (with two hose bands), a container table |
Downloads
Click on the links below to download the associated PDFs.
Interested In Our Yamato GB210B Versatile Granulation Spray Dryer?
