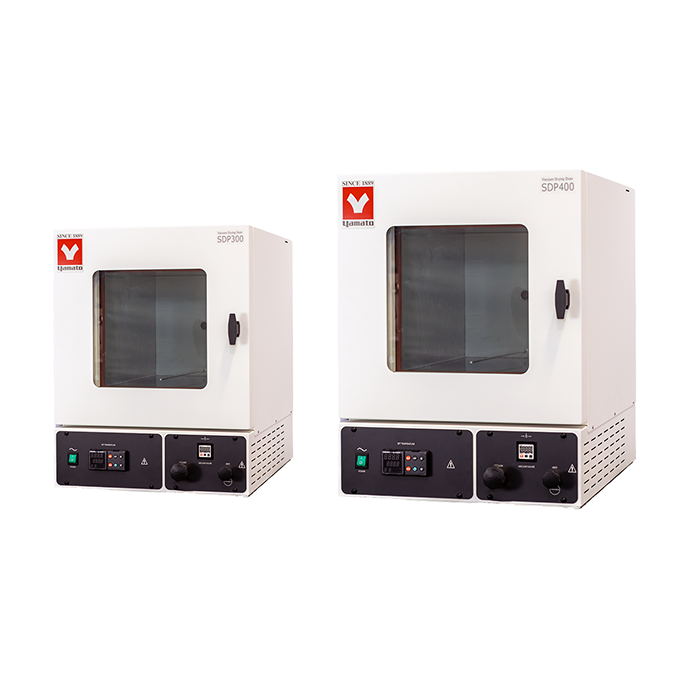

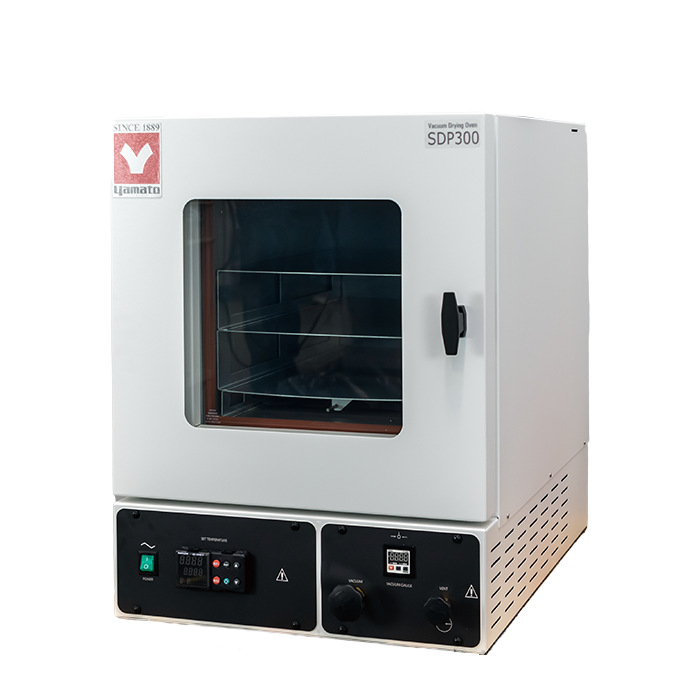

SDP300/310/400/410/610

Yamato SDP Series Vacuum Drying Ovens

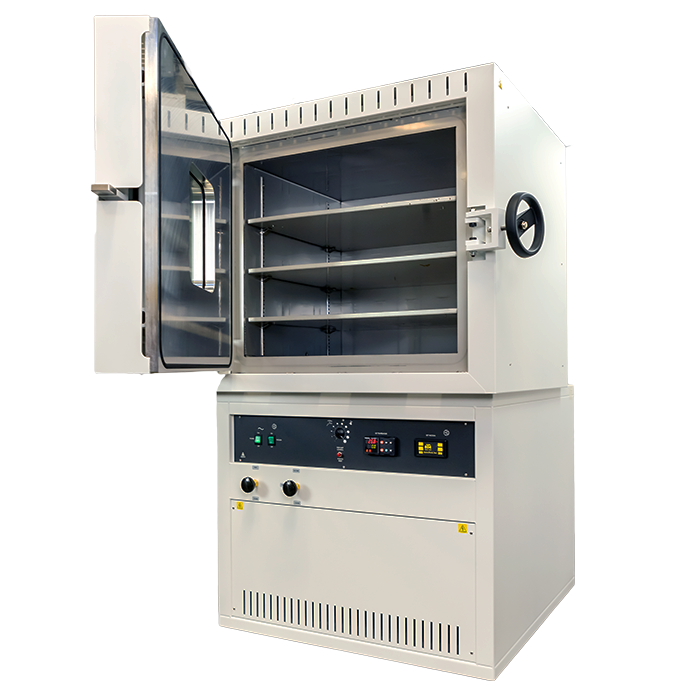

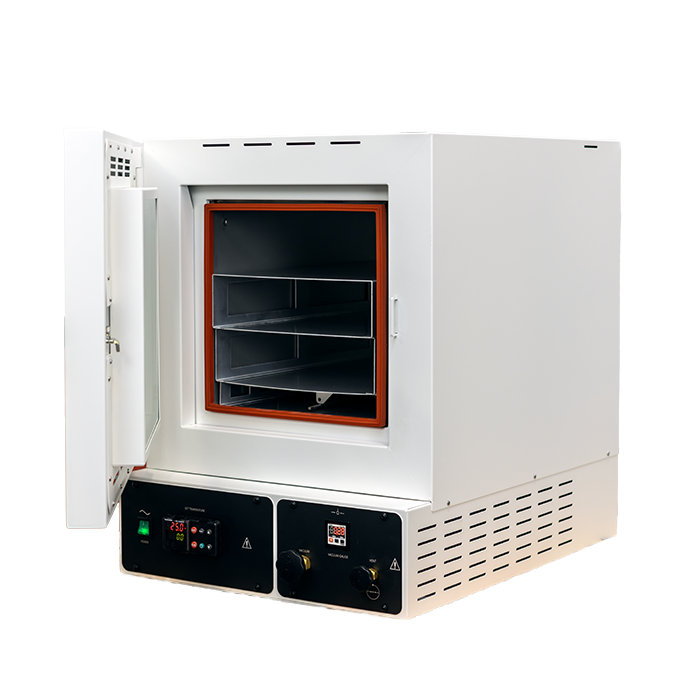

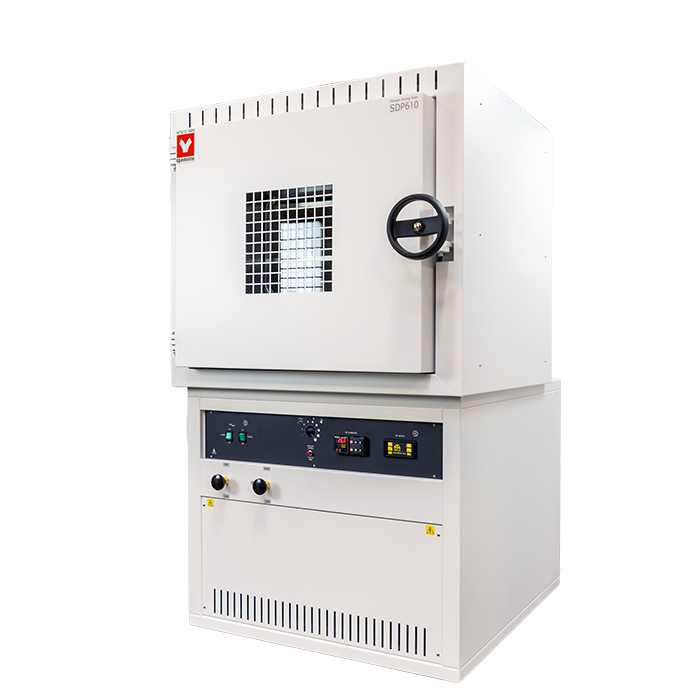

Benchtop to Floor Type Vacuum Drying Oven for fast and gentle drying of heat-sensitive materials

$ 1.00 1.0 USD $ 1.00

$ 1.00

This combination does not exist.

ADD TO CART

Features Technical Specs Downloads

Interested in Yamato SDP Series Vacuum Drying Ovens?

The SDP300/310/400/410/610 Yamato SDP Series Vacuum Drying Ovens comes from more than a century of experience building exceptional-quality lab instruments. They're already used by biotechs working on innovative cannabis products across the country, and they pair perfectly with other Yamato lab-scale instruments - making your workflow and ongoing maintenance easier. Learn more below and contact us to request a quote.

Fill in the form below to request a quote.

Submit

Features

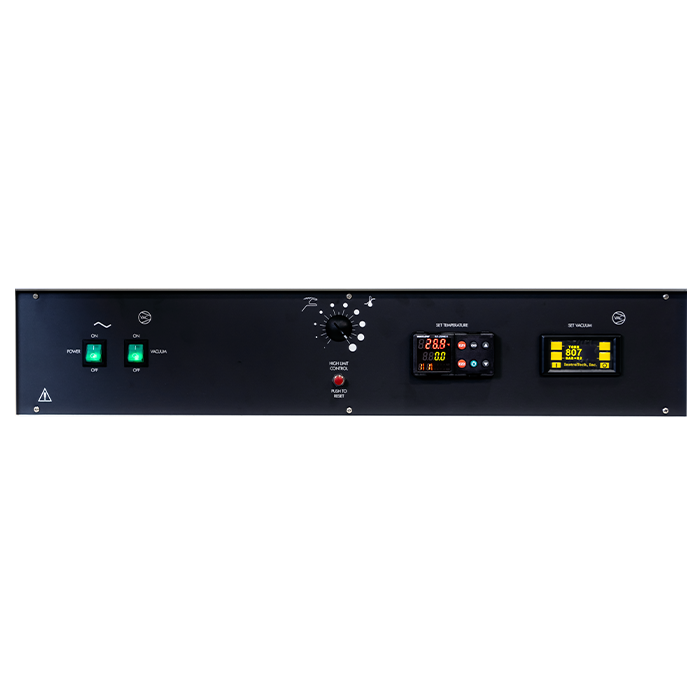

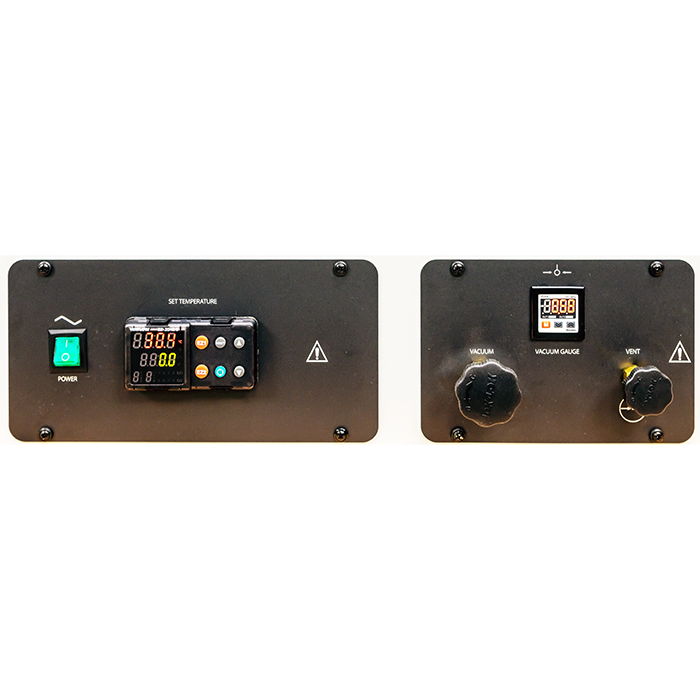

Programmable Watlow controller to perform multiple ramp and soak profiles
Digital vacuum gauge displaying vacuum level of chamber

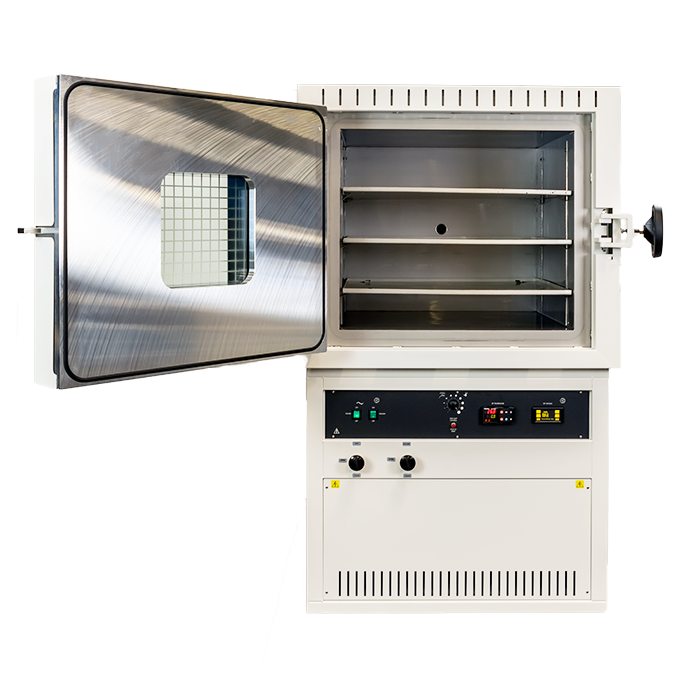

Doors with positive latch handles and spring-loaded glass facilitating good vacuum seal
Tempered glass viewing window for safe, continuous monitoring of samples
Generous usable shelf area
Meets TUV safety requirements

Yamato SDP Series Vacuum Drying Ovens
Technical Specs

Model	SDP300 SDP310	SDP400 SDP410	SDP610
Operating temperature range	Room temperature +10°C ~220°C	Room temperature +15°C ~220°C
Operating vacuum range	40-3.0 ~ -29.9 inHg (-10 ~ 101 kPa)
Vacuum display range	0.0 ~ -29.9 inHg (5 to -101 kPa)	760 Torr down to 0 mTorr
Controls	EZ-ZONE Watlow

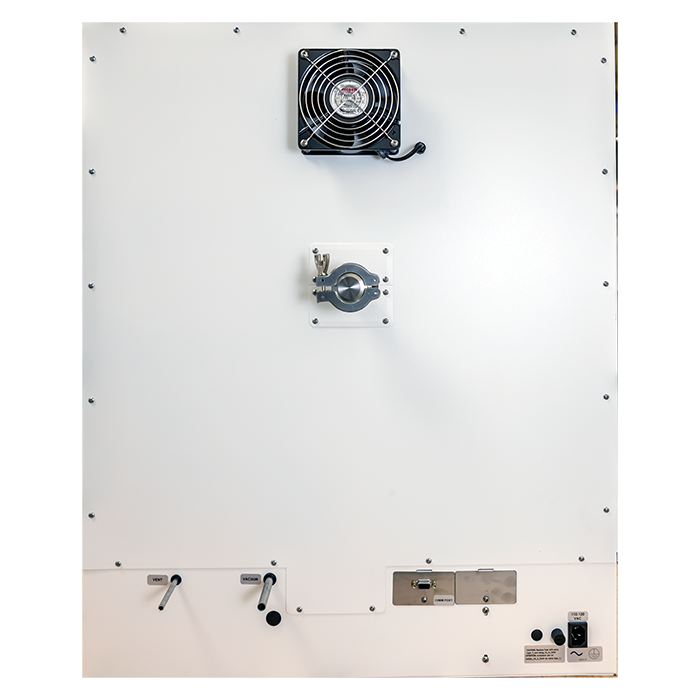

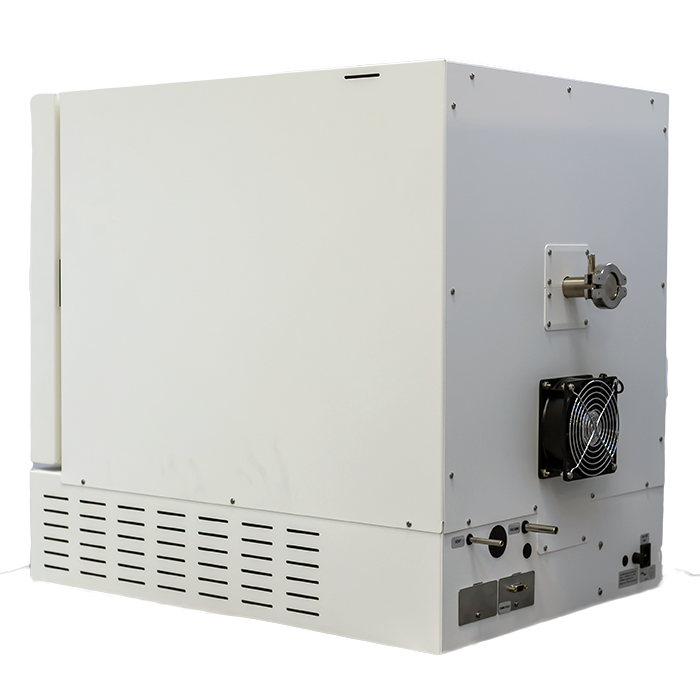

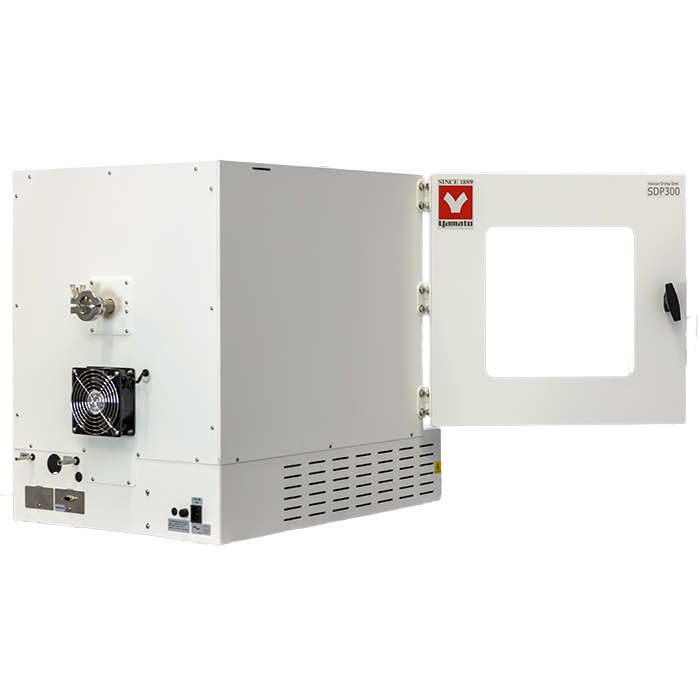

Access port	KF25
Temperature uniformity - midrange	± 6.0% of setpoint
Temperature stability @ 80°C @ 150°C @ 220°C	± 0.1°C ± 0.20°C ± 0.3°C	± 0.2°C ± 0.25°C ± 0.3°C	± 0.2°C ± 0.2°C ± 0.3°C
Heat up times @ 80°C (from RT of 20°C for SDP300/400)@ 150°C (from RT of 25°C for SDP610)@ 220°C	70 mins. 120 mins. 200 mins.	70 mins. 120 mins. 230 mins.	80 mins. 130 mins. 180 mins.
Cool down times From @ 80°C (time to cool down to 50°C)From @ 150°C From @ 220°C	110 mins. 188 mins. 233 mins.	161 mins. 318 mins. 420 mins.	--- --- ---
Controller	Digital
Display resolution	0.1°C
Interior material	300 SST
Exterior material	Painted cold roll steel
Standard chamber gasket	Silicone	Viton
Internal dimensions	W304 x D508 x H304 mm 12 × 20 × 12 in.	W457 x D610 x H457 mm 18 × 24 × 18 in	W710 x D609 x H609 mm 28 × 24 × 24 in
External dimensions WxDxH	W528 x D795 x H681 mm 20.8 × 31.3 × 26.8 in	W686 x D895 x H833 mm 27.0 × 35.2 × 32.8 in	W965 x D1189 x H1624 mm 38.1 × 46.8 × 63.9 in
Internal capacity	47.2L	127.4L	264L
Shelf dimensions (WxD)	287 x 483 mm (11.3” x 19”)
Shelf capacity by weight per shelf *1	15.8 kg	34 kg
Maximum total load *2	47.6 kg.	102 kg
Shelf rest step number	3 steps	6 steps	3 steps
Power source 50/60 Hz	AC110 - 120V 10A AC220 - 240 5.5A	AC110 - 120V 13A AC220 - 240V 7A	AC230V 20A (no plug)
Weight	~83kg	~144kg	~223kg
Included accessories	3 shelves (2 tall, 1 short bottom), 1 power cord, 4 leveling feet	3 shelves, 12 shelf clips, 1 power cord, 4 leveling feet	3 shelves, 12 shelf clips, 4 leveling feet, oil drain tray
List Price	$ 10,180	$ 19,575	$ 28,735

Model	SDP300 SDP310	SDP400 SDP410	SDP610
Operating temperature range	Room temperature +10°C ~220°C		Room temperature +15°C ~220°C
Operating vacuum range	40-3.0 ~ -29.9 inHg (-10 ~ 101 kPa)
Vacuum display range	0.0 ~ -29.9 inHg (5 to -101 kPa)		760 Torr down to 0 mTorr
Controls	EZ-ZONE Watlow
Access port	KF25
Temperature uniformity - midrange	± 6.0% of setpoint
Temperature stability @ 80°C @ 150°C @ 220°C	± 0.1°C ± 0.20°C ± 0.3°C	± 0.2°C ± 0.25°C ± 0.3°C	± 0.2°C ± 0.2°C ± 0.3°C
Heat up times @ 80°C (from RT of 20°C for SDP300/400)@ 150°C (from RT of 25°C for SDP610)@ 220°C	70 mins. 120 mins. 200 mins.	70 mins. 120 mins. 230 mins.	80 mins. 130 mins. 180 mins.
Cool down times From @ 80°C (time to cool down to 50°C)From @ 150°C From @ 220°C	110 mins. 188 mins. 233 mins.	161 mins. 318 mins. 420 mins.	--- --- ---
Controller	Digital
Display resolution	0.1°C
Interior material	300 SST
Exterior material	Painted cold roll steel
Standard chamber gasket	Silicone		Viton
Internal dimensions	W304 x D508 x H304 mm 12 × 20 × 12 in.	W457 x D610 x H457 mm 18 × 24 × 18 in	W710 x D609 x H609 mm 28 × 24 × 24 in
External dimensions WxDxH	W528 x D795 x H681 mm 20.8 × 31.3 × 26.8 in	W686 x D895 x H833 mm 27.0 × 35.2 × 32.8 in	W965 x D1189 x H1624 mm 38.1 × 46.8 × 63.9 in
Internal capacity	47.2L	127.4L	264L
Shelf dimensions (WxD)	287 x 483 mm (11.3” x 19”)
Shelf capacity by weight per shelf *1	15.8 kg		34 kg
Maximum total load *2	47.6 kg.		102 kg
Shelf rest step number	3 steps	6 steps	3 steps
Power source 50/60 Hz	AC110 - 120V 10A AC220 - 240 5.5A	AC110 - 120V 13A AC220 - 240V 7A	AC230V 20A (no plug)
Weight	~83kg	~144kg	~223kg
Included accessories	3 shelves (2 tall, 1 short bottom), 1 power cord, 4 leveling feet	3 shelves, 12 shelf clips, 1 power cord, 4 leveling feet	3 shelves, 12 shelf clips, 4 leveling feet, oil drain tray
List Price	$ 10,180	$ 19,575	$ 28,735

*1 With weight evenly distributed across the shelf
*2 Exceeding this limit risks damaging chamber liner

Downloads
Click on the links below to download the associated PDFs.

Oven Overview

SDP Series Catalog

Oven Accessories

GLD Series Vacuum Pump Catalog
