WA301B / 311B / 301R / 311R
Analytical Type 1 Ultrapure Water Purification System
Water is purified using a stage purification process which includes high-purity ion exchange resins to remove dissolved minerals and internal recirculation to maintain purity. As water exits the system, a final filter removes particulates and bacteria to reach Type I water specifications.
Stop wasting half your ultrapure water budget.
Applications
- General Chemistry
- Buffer Solutions
- Academia
WA Series Configuration
- Conditioning cartridge
- Polishing cartridge
- 0.2 micron filter
WA301B / 311B / 301R / 311R
Features
Made in USA
Low-cost of Ownership
Compact design
Quick change, cartridge – no tools needed
2.5 LPM* of 18 MΩ Type 1 reagent water on demand
Premium quality ion exchange resin
Intuitive, user-friendly touch screen interface
Large capacity, low cost consumable cartridges
Real time quality monitoring with leak detection
Replacement cartridges are fresh and made in the USA. 1 year shelf life.
WA301B / 311B / 301R / 311R

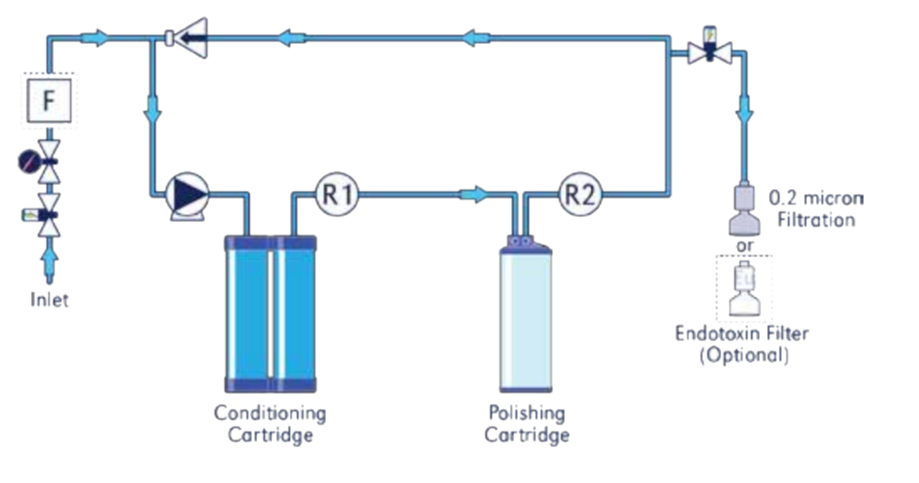

Flow Diagram
WA301B / 311B / 301R / 311R
Technical Specs
| Model |
WA301B/WA311B
|
WA301R/WA311R
|
| Type |
Benchtop |
Remote dispense |
| Resistivity* |
18.2 MΩ-cm |
|
| Bacteria* |
< 1 cfu/ml |
|
| Particulates* |
< 0.2 μm filtration |
|
| TOC* |
< 15 ppb |
|
| Temperature |
100˚F / 30˚C |
|
| Pressure |
90 PSIG Max. / 20 PSIG Min. |
|
| Flow Rate (Typical) |
0.67 Gallons Per Minute / 2.5 Liters Per Minute < 2.0 LPM with Ultrafilter & Endotoxin filter installed |
|
| Inlet Connection |
3/8” O.D. Tubing / 9.53 mm O.D. Tubing |
|
| Dimensions (H X W X D) |
21.6 in. x 14.7 in. x 14.4 in. (54.8 cm x 37 cm x 36.5 cm) |
|
| Weight |
42 lbs. dry / 47 lbs. operating (22.7 kg dry / 25 kg operating) |
|
| Power Requirements |
120V, 60 Hz @ 1.0 amp / 220V, 50 Hz @ 0.5 amp |
|
| List Price | $ 10,970 |
$ 12,705 |
WA301B / 311B / 301R / 311R
Downloads
Want to cut your price per liter of ultrapure water in half?
