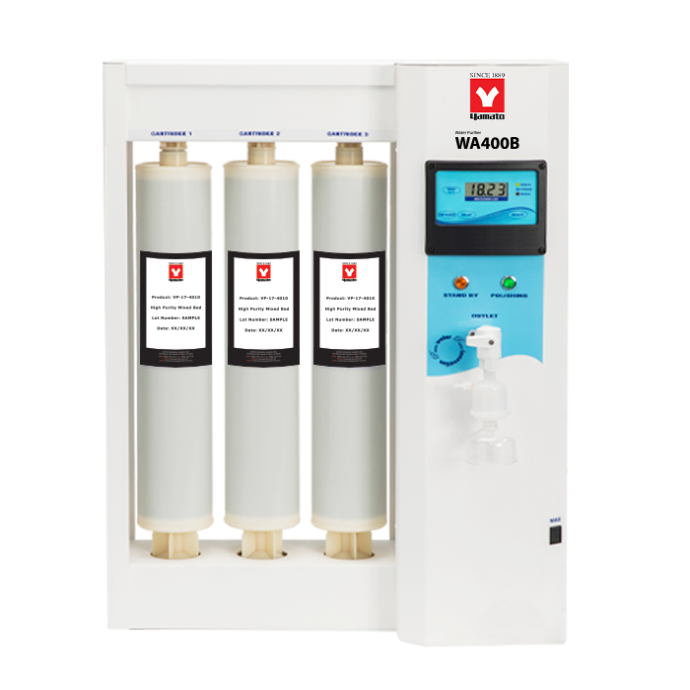

WA401 / 401UV / 201UF / 201UVUF
Economical Type 1 Ultrapure Water Purification System
This system provides 4L per minute of 18.2 megohm water. A quiet recirculation pump ensures constant water purity. Water quality meets or exceeds ASTM Type I water specifications.
Stop wasting half your ultrapure water budget.
WA Series Configuration
- Built-in pressure regulator
- 0.2 micron filter
WA401 / 401UV / 201UF / 201UVUF
Features
Made in USA
Low-cost of Ownership
Compact design
Quick change, cartridge – no tools needed
4 LPM* of 18 MΩ Type 1 reagent water on demand
Premium quality ion exchange resin
Large capacity, low cost consumable cartridges
Replacement cartridges are fresh and made in the USA. 1 year shelf life.
WA401 / 401UV / 201UF / 201UVUF

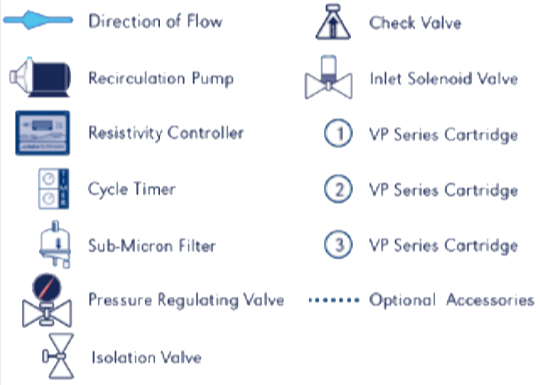

Flow Diagram
WA401 / 401UV / 201UF / 201UVUF
Technical Specs
| Model |
WA401 WATER SYSTEM WITH 0.2 MICRON CAPSULE FILTER WA401UV WATER SYSTEM WITH 0.2 MICRON CAPSULE FILTER AND COMBINATION UV FOR BACTERIA AND TOC DISTRUCT |
WA201UF WATER SYSTEM WITH 0.05 MICRON CAPSULE ULTRAFILTER WA201UVUF WATER SYSTEM W/ 0.05 MICRON CAPSULE ULTRAFILTER AND COMBINATION UV FOR BACTERIA & TOC DISTRUCT |
|
Influent Quality
|
||
| Source |
Reverse Osmosis, DI or Distillation |
|
| Purity |
0.2 micron |
|
| Filtration |
< 15 ppb |
|
| Free Chlorine |
< 0.05 ppm |
|
| Silica |
< 2 ppm |
|
| TOC |
< 50 ppb |
|
|
Effluent Quality (Standard System)
|
||
| Purity |
> 18 Megohm- cm |
|
| Microorganisms |
< 10 CFU / mL |
|
| Chlorides |
< 1 ppb |
|
| Sodium |
< 1 ppb |
|
| With 0.05 Micron UF Endotoxin |
< 0.03 EU |
|
|
Technical Data
|
|
|
| Pressure |
90 PSIG Maximum 20 PSIG Minimum |
|
| Temperature |
100˚F / 30˚C |
|
| Flow Rate |
4.0 lpm (1.1 GPM) 2.0 lpm (0.53 GPM) with capsule filter |
|
| Connections |
Inlet 3/8” Tube Outlet 1/4” FNPT |
|
| Dimensions (H X W X D) |
25 in. x 23 in. x 8.5 in. (64 cm x 59 cm x 22 cm) |
|
| Weight |
32 lbs dry / 38 lbs operating (14.5 kg dry / 17.3 kg operating) |
|
| Outer Shell |
Powder coated steel |
|
| Power Requirements |
120V, 60 Hz @ 1.0 amp |
|
| Options |
Remote dispensing gun, 0.05 micron hollow fiber UF filter, combination high-purity/sub-micron cartridge, Reverse osmosis, direct feed option for auxiliary equipment | |
| List Price |
WA401: $ 6,175 WA401UV: $ 7,390 Note: VP Series cartridges sold separately | WA201UF: $ 6,700 WA201UVUF: $ 7,915 Note: VP Series cartridges sold separately |
WA401 / 401UV / 201UF / 201UVUF
Downloads
Want to cut your price per liter of ultrapure water in half?
