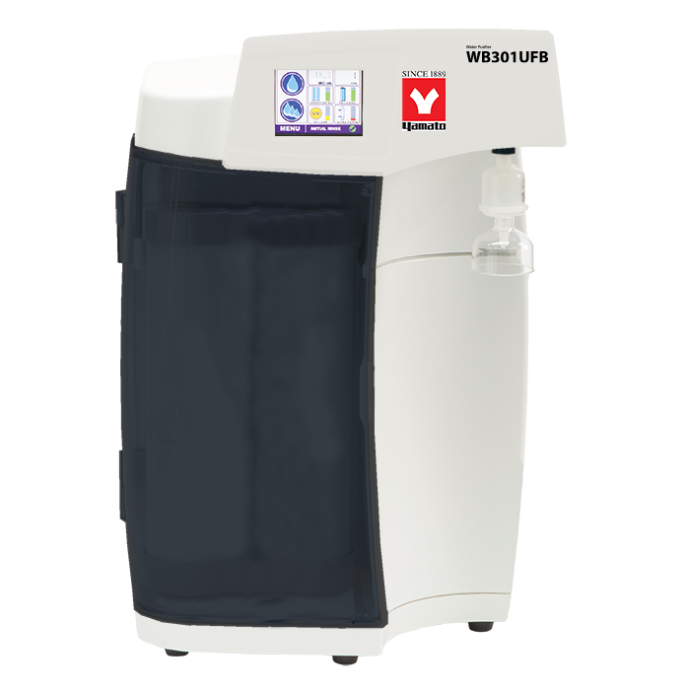

WB301UFB / 311UFB / 301UFR / 311UFR
Biological Type 1 Ultrapure Water Purification System
Water is purified using a staged purification process which includes high-purity ion exchange resins to remove dissolved minerals and pyrogen removal ultrafiltration. As water exits the system, a final filter removes particulates and bacteria to reach Type I water specifications.
Stop wasting half your ultrapure water budget.
Applications
- Life Science
- Cell Culture
- Microbiology
WB Series Configuration
- Conditioning cartridge
- Polishing cartridge
- 0.2 micron filter
- Ultrafiltration
WB301UFB / 311UFB / 301UFR / 311UFR
Features
Made in USA
Low-cost of Ownership
Compact design
Quick change, cartridge – no tools needed
2.5 LPM* of 18 MΩ Type 1 reagent water on demand
Premium quality ion exchange resin
Intuitive, user-friendly touch screen interface
Large capacity, low cost consumable cartridges
Real time quality monitoring with leak detection
Replacement cartridges are fresh and made in the USA. 1 year shelf life.
WB301UFB / 311UFB / 301UFR / 311UFR

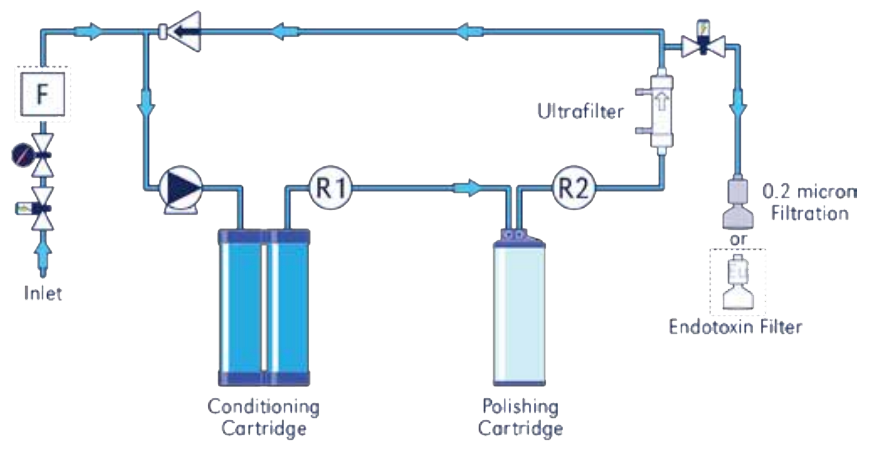

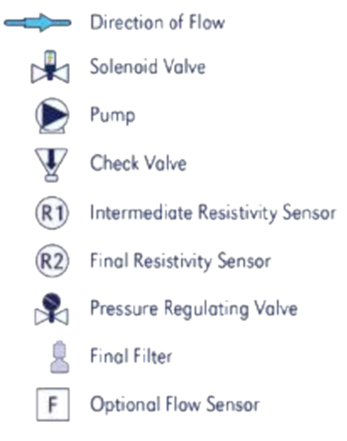

Flow Diagram
WB301UFB / 311UFB / 301UFR / 311UFR
Technical Specs
| Model | WB301UFB/WB311UFB | WB301UFR/WB311UFR |
| Type | Benchtop | Remote dispense |
| Resistivity* | 18.2 MΩ-cm | |
| Bacteria* | < 1 cfu/ml | |
| Endotoxin* | < 0.005 EU/ml | |
| Particulates* | < 0.05 μm filtration | |
| TOC* | < 15 ppb | |
| RNase* | < 0.01 ng/ml | |
| DNase* | < 4 pg/μl | |
| Temperature | 100˚F / 30˚C | |
| Pressure | 90 PSIG Max. / 20 PSIG Min. | |
| Flow Rate (Typical) | 0.67 Gallons Per Minute / 2.5 Liters Per Minute < 2.0 LPM with Ultrafilter & Endotoxin filter installed | |
| Inlet Connection | 3/8” O.D. Tubing / 9.53 mm O.D. Tubing | |
| Dimensions (H X W X D) | 21.6 in. x 14.7 in. x 14.4 in. (54.8 cm x 37 cm x 36.5 cm) | |
| Weight | 42 lbs. dry / 47 lbs. operating (22.7 kg dry / 25 kg operating) | |
| Power Requirements | 120V, 60 Hz @ 1.0 amp / 220V, 50 Hz @ 0.5 amp | |
| List Price | $ 12,205 | $ 13,960 |
* Performance based upon RO / DI or Distillation Feed (< 20 uS/cm, < 50 ppb of TOC, 0.2 micron filtration)
WB301UFB / 311UFB / 301UFR / 311UFR
Downloads
Want to cut your price per liter of ultrapure water in half?
